Solvent-free polyurethane self-leveling system
Product Details
Product features
Scratch-resistant and can be cured at low temperatures;
Good elasticity and comfortable foot feel;
It does not suck up dust, does not generate dust, and is extremely easy to clean.
Silencing
Scope of application
It is suitable for hospitals, classrooms, conference venues, light-load garages, etc.
| Technical Indicators | ||
| Performance Category | Performance Parameter | Technical Index (GB/T22374-2018) |
| Drying Time | Surface Dry, h | 8 |
| Actual Dry, h | 48 | |
| Hardness | Shore Hardness | 75 (Shore A) |
| Abrasion Resistance | 750g/500r | 0 |
| Impact Resistance | Heavy Load | 1000g steel ball, 100cm height; no coating cracks or peeling |
| Anti-slip Property | Dry Friction Coefficient | 1 |
| Elongation at Break | % | 140 |
| Water Resistance | 168h | No blistering, no peeling; slight discoloration allowed |
| Chemical Resistance | Oil Resistance (120# Solvent Gasoline, 72h) | No blistering, no peeling; slight discoloration allowed |
| Alkali Resistance (20% NaOH, 72h) | ||
| Acid Resistance (10% H₂SO₄, 48h) | ||

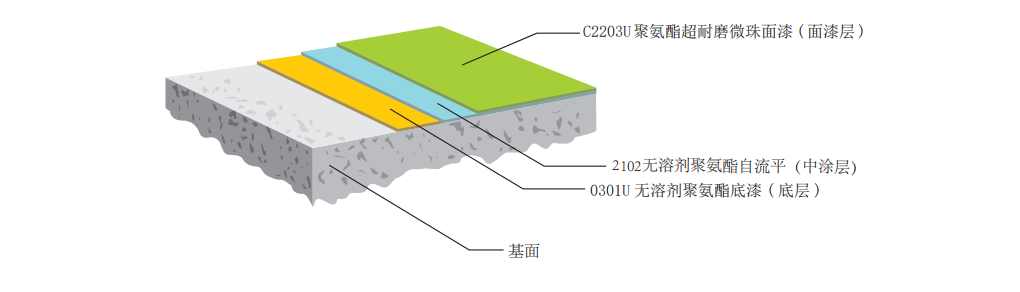

| Matching Instructions | |||||
| Coating Layer | Material Model | Packaging Specification | Mixing Ratio | Single Coat Usage (kg/m²) | Single Coat Thickness (mm) |
| Primer | WEDO-0301U Solvent-Free Polyurethane Primer | 20KG/8KG | 2.5:1 | 0.15 (Knife Coating) | 0.15/0.3 |
| 0.3 (Roller Coating) | |||||
| Mid-Coat Layer | WEDO-2102 Solvent-Free Polyurethane Self-Leveling Coat | 20KG/4KG | 5:01 | 1–1.2 | 0.95 |
| Topcoat Layer | WEDO-C2203 Polyurethane Ultra-Wear-Resistant Micro-Pearl Topcoat | 10KG/4KG/6KG | 5:02:03 | 0.08–0.1 | 0.08–0.1 |
Notes
Strictly control the ambient temperature between 5 and 30℃. If the temperature is too high, the reaction will be too fast, affecting the leveling performance. The temperature is too low, the reaction is too slow, and the hardness of the paint film is poor.
Strictly control the environmental humidity below 80%. If the humidity is too high, problems such as unresolved bubbles and poor hardness of the paint film may occur.
Polyurethane materials dry relatively quickly. After mixing, they must be used up within 15 minutes and treated with defoaming rollers for defoaming.
Mix in small amounts each time according to the situation. Do not mix all at once to avoid insufficient construction.
Construction conditions and base material preparation should be strictly carried out in accordance with the product manual.
Technical Statement
Our company can design construction plans of different specifications (thickness, effect, etc.) through flexible matching and combination of various products to meet the personalized requirements of all kinds of customers. To ensure that your project can select the appropriate floor system, please consult our professional technical advisors. However, when using our company's products, please strictly follow the construction process, dosage requirements and precautions of the product. Otherwise, our company will not bear any responsibility for the quality of the project or any losses.
| Construction Process | ||
| Process Name | Specific Methods and Requirements | Single Coat Usage (kg/m²) |
| Substrate Treatment | 1. Substrate strength: Not less than C20 | / |
| 2. Substrate flatness: ≤5mm (measured with a 2m ruler) | ||
| 3. Substrate dryness: Moisture content of substrate surface < 8% | ||
| 4. Repair hollowing and cracks on the ground in advance | ||
| 5. Fully grind the concrete substrate | ||
| Primer Layer | 1. Use WEDO-0301U: Mix base paint and curing agent in proportion until uniform | 0.15/0.3 |
| 2. Apply evenly with a roller | ||
| 3. Use a wool brush for edges (door sides, wall corners, machine corners) | ||
| Mid-Coat Layer | Use WEDO-2102: Mix base paint and curing agent in proportion until uniform; apply evenly with a trowel or spray (ensure no missing areas). After application, treat with a bubble-removing roller. Once fully dry, grind with 300-grit sandpaper | 1–1.2 |
| Topcoat Layer | Use WEDO-C2203: Mix base paint and curing agent in proportion until uniform, then add micro-pearls and stir evenly. Apply 3–4 even coats with a roller (until no obvious roller marks remain) | 0.08–0.1 |
Construction section
Construction conditions
Air temperature: 10℃ - 30℃
Relative humidity < 80%
The moisture content of the substrate surface is less than 8%
The construction site should have good ventilation. Dew point temperature: The substrate and the substrate of the uncured coating must be at least 3℃ higher than the dew point temperature
To reduce the risk of condensation or mottling in the floor coating
Oily floors must be thoroughly cleaned up; otherwise, it may affect the even application of the coating.
