Epoxy terrazzo system
Product Details
Product features
Colorful and exquisite in pattern;
Express the designer's imagination freely. The colors are brilliant and you can choose as you like.
Smooth and seamless, with a dense surface, it is easy to clean, maintain and preserve
Durable, bright and wear-resistant;
Resistant to staining and chemical corrosion.

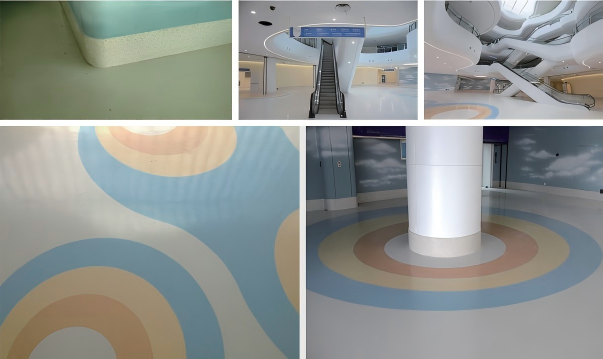

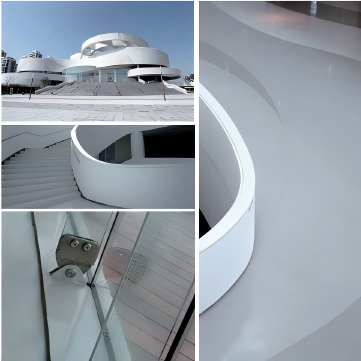

Scope of application
It is suitable for ground decoration of commercial buildings such as airports, railway stations, exhibition centers, museums and stadiums, as well as public places such as shopping centers, hotels, restaurants, schools, libraries, hospitals and office buildings.
| Technical Indicators | |||
| Performance Category | Performance Parameter | Technical Index (GB/T22374-2018) | Test Result |
| Drying Time | Surface Dry, h | ≤ 8 | Compliant |
| Actual Dry, h | ≤ 48 | Compliant | |
| Hardness | Shore Hardness (D Scale) | Agreed | 83 |
| Abrasion Resistance | 750g/500r | ≤ 0.03 | 0.023 |
| Impact Resistance | Heavy Load | 1000g steel ball, 100cm height; no coating cracks or peeling | Compliant |
| Anti-slip Property | Dry Friction Coefficient | ≥ 0.5 | 0.61 |
| Water Resistance | 168h | No blistering, no peeling; slight discoloration allowed | Compliant |
| Chemical Resistance | Oil Resistance (120# Solvent Gasoline, 72h) | No blistering, no peeling; slight discoloration allowed | Compliant |
| Alkali Resistance (20% NaOH, 72h) | |||
| Acid Resistance (10% H₂SO₄, 48h) | |||

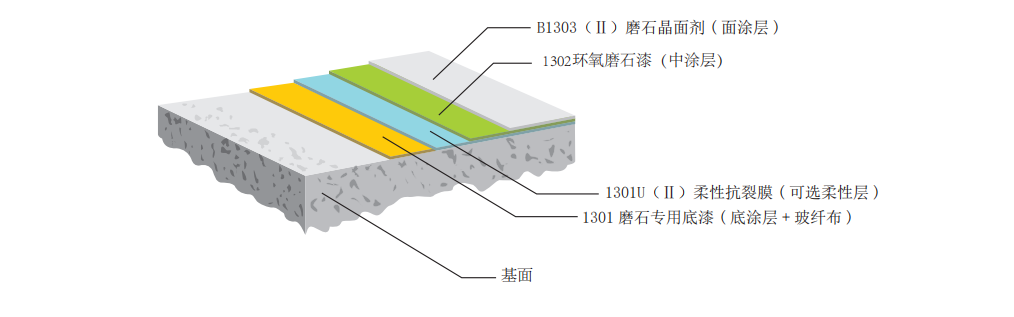

| Matching Instructions | |||||
| Coating Layer | Material Model | Packaging Specification | Mixing Ratio | Single Coat Usage (kg/m²) | Single Coat Thickness (mm) |
| Primer Layer | TZ0-1301 Grinding Stone Special Primer | 20KG/10KG | 2:01 | 0.3–0.4 | 0.3–0.4 |
| TZ0-1301U Flexible Grinding Stone Primer | 20KG/8KG | 2.5:1 | |||
| Fiberglass Cloth Application | TZ0-1301 Grinding Stone Special Primer | 20KG/10KG | 2:01 | 0.2–0.3 | 0.2–0.3 |
| TZ0-1301U Flexible Grinding Stone Primer | 20KG/8KG | 2.5:1 | |||
| Flexible Layer (Optional) | TZ0-1301U (II) Flexible Anti-Cracking Membrane | 15KG/5KG | 3:01 | 0.4 | 0.6 |
| Mid-Coat Layer (Filling Slurry) | TZ01302 (I) Epoxy Grinding Stone Paint | 25KG/5KG | 5:01 | 5.5–6.5 | 10–12 |
| Varnish Layer (Glossy) | TZ0-B1303 (II) Grinding Stone Finishing Agent (II) | 18KG/3KG | 6:01 | 0.06 | 0.09 |
| Varnish Layer (Matte) | WEDO-0704S Waterborne Polyurethane Clear Matte Varnish | 16KG/4KG/4KG | 4:01:01 | 0.1 | 0.06 |
| Construction Process | ||
| Process Name | Specific Methods and Requirements | Single Coat Usage (kg/m²) |
| Substrate Treatment | 1. Substrate strength: Compressive strength of the leveling layer ≥25MPa 2. Substrate dryness: Moisture content of substrate surface < 8% 3. Repair hollowing and cracks on the ground in advance 4. Flatness: Gap ≤3mm (measured with a 2m ruler) | / |
| Primer Layer | 1. Use TZ0-1301: Mix base paint and curing agent in proportion until uniform 2. Apply evenly by roller coating or knife coating 3. Use a wool brush for edges (door sides, wall corners, machine corners) 4. Areas with partial missing scraping or whitening need to be touch - up repaired. | 0.3–0.4 |
| Fiberglass Cloth Application | 1. Apply grinding stone primer evenly 2. Lay fiberglass cloth neatly and flatly on the primer 3. Roll the cloth with a roller to ensure full adhesion (overlap 10cm) 4. Fully cover the fiberglass cloth with primer | 0.2–0.3 |
| Flexible Layer (Optional) | Use TZ0-1301U (II): Mix base paint and curing agent in proportion until uniform, then apply | 1.2 |
| Layout Setting | 1. Mark the layout lines with a color pen according to the drawing; recheck to avoid distortion 2. Note reference points for accuracy; mark lines with a pen 3. Take more points for curves; connect points with a soft strip/PVC pipe, draw curves on one side of the pipe, and install dividers per layout | / |
| Divider Strip Paving | 1. Select divider strip type 2. Fix strips on the ground per layout; ensure firm installation, accurate position, and smooth lines 3. Check flatness with a level in dense strip areas 4. Fix curve ends with two nails | / |
| Mid-Coat Layer | 1. Use TZ0-1302 (I) Epoxy Grinding Stone: Pre-stir Component A; mix A:B=5:1, then add grinding stone aggregate (Epoxy grinding stone:Aggregate=1: 3.3–3.6); stir paint and aggregate evenly with a vertical mixer 2. Pave evenly in divider strips (start with edges/corners) 3. Check flatness with a ruler; touch up gaps promptly 4. Allow full curing before paving other colors 5. Pave dark materials first for different colors 6. Reserve repair materials during paving | 5.5–6.5 |
| Rough Grinding | 1. Grind the floor with 50# diamond discs and clean dust 2. Grind with 150# resin discs 3. Check flatness with a ruler while grinding edges | / |
| Medium Grinding | 1. Grind with 150# resin discs 2. Wash and dry the floor after grinding | / |
| Filling Slurry 1 | 1. Clean the floor with a vacuum to ensure it’s clean and dry 2. Apply filling slurry repeatedly 3. Scatter 80–120 mesh sand; use a floor scrubber to close large pores | 0.1 |
| Fine Grinding 1 | 1. Grind with 300# resin discs 2. Wash and dry the floor after grinding 3. Grind edges with a hand grinder | / |
| Filling Slurry 2 | 1. Cover patterns/zones with paper tape for protection before filling 2. Mix mid-coat:Fine sand=1: 0.2; apply filling slurry repeatedly | 0.1 |
| Fine Grinding 2 | 1. Grind with 500# resin discs 2. Wash and dry the floor after grinding 3. Grind edges with a hand grinder | / |
| Precision Grinding | 1. Grind with 500# resin discs 2. Wash and dry the floor after grinding 3. Polish edges with a hand grinder | / |
| Sealing Layer | 1. Apply sealer evenly with no accumulation | 0.15 |
| Construction Process | ||
| Process Name | Specific Methods and Requirements | Single Coat Usage (kg/m²) |
| Substrate Treatment | 1. Substrate strength: Not less than C20 2. Substrate flatness: ≤3mm (measured with a 2m ruler) 3. Substrate dryness: Moisture content of substrate surface < 8% 4. Repair hollowing and cracks on the ground in advance 5. Fully grind the concrete substrate | / |
| Primer Layer | 1. Use WEDO-0301: Mix base paint and curing agent in proportion until uniform 2. Apply evenly with a roller 3. Use a wool brush for edges (door sides, wall corners, machine corners) | 0.15 (Knife Coating) |
| 0.3 (Roller Coating) | ||
| Mid-Coat Mortar Layer | 1. Use WEDO-0302: Mix base paint and curing agent in proportion until uniform, then add quartz sand (usually 80-120 mesh) at the recommended ratio: Paint:Quartz sand = 1: 0.2-1, stir evenly 2. Scrape fully with a trowel; adjust the number of coats as needed 3. Grind and dust off after curing | 0.3–0.5 |
| Putty Layer | 1. Use WEDO-0302: Mix base paint and curing agent in proportion until uniform, then add appropriate fillers (quartz powder, talc powder, etc.) at the ratio: Paint:Filler = 1: 0.1-0.5, stir evenly 2. Scrape evenly with a trowel, focus on repairing defects like pinholes and air pits; adjust the number of coats as needed 3. Fully grind and dust off after curing | 0.1 |
| Topcoat Layer | 1. Use WEDO-1103: Mix Component A and Component B in proportion until uniform, then apply evenly with a trowel (ensure no missing areas) 2. Treat with a bubble-removing roller after application | 2.5–3 |
| Varnish Layer (Optional) | After the topcoat layer is dry, select different varnishes to adjust the surface gloss and improve surface scratch resistance | 0.1 |
Construction section
Notes
Pay attention to different treatment methods for various gaps, hollows, oil stains and dampness, etc.
The fiberglass cloth must fully cover the base layer (overlapping by 10cm) without any wrinkles or bulges.
The divider strips should be installed firmly, accurately positioned, and with straight lines. Check the flatness with a level.
The proportion of paint aggregates must be accurate. Aggregates that are damp or discolored are not allowed to be used.
Stir the materials according to the spreading speed. The materials must be thoroughly mixed. When spreading by color separation, wait until the previous layer of materials is completely cured.
When laying the material, use a straightedge to check the flatness. If there are any concave parts, replenish the material in time.
When laying materials of different colors, the dark-colored materials should be laid first.
If it is found that the materials are insufficient during the laying process, stop immediately. Install the divider strips and wait for the second batch of materials to arrive before laying again.
When laying the material, reserve the grouting material
Technical Statement
Our company can design construction plans of different specifications (thickness, effect, etc.) through flexible matching and combination of various products to meet the personalized requirements of all kinds of customers. To ensure that your project can select the appropriate floor system, please consult our professional technical advisors. However, when using our company's products, please strictly follow the construction process, dosage requirements and precautions of the product. Otherwise, our company will not bear any responsibility for the quality of the project or any losses.
Construction conditions
The moisture content of the substrate surface is less than 8%
Relative humidity ≤ 80%
Dew point temperature: The substrate and the substrate of the uncured coating must be at least 3℃ higher than the dew point temperature to reduce the risk of condensation or mottling of the ground coating
For specific details, please refer to the construction plan.
