Weather-resistant polyurethane system

This product is a solvent-based two-component weather-resistant polyurethane floor paint material, composed of acrylic resin, weather-resistant pigments, imported additives, etc. It has good light retention and color retention, is easy to apply, and is resistant to ultraviolet light exposure without decomposition or yellowing. This product is suitable for various outdoor courts, stadium stands, etc.
Get A Quote

Product Details

Product features

  • Bright colors, excellent resistance to yellowing and aging;

  • Resistant to ultraviolet rays from the sun and has good weather resistance.

  • Strong adhesion, anti-slip and impact-resistant;

  • High mechanical strength and excellent wear resistance; Excellent chemical resistance.


Scope of application

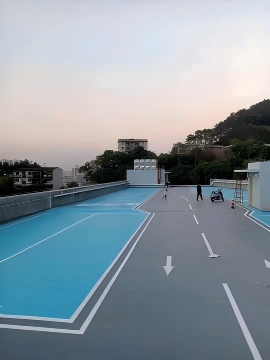

It is suitable for outdoor basketball courts, tennis courts, badminton courts and rooftop open-air parking lots, etc.


Technical Indicators
Performance Category Performance Parameter Technical Index (GB/T22374-2018) Test Result
Drying Time Surface Dry, h ≤ 8 Compliant
Actual Dry, h ≤ 48 Compliant
Hardness Pencil Hardness (Scratch) Agreed 2H
Abrasion Resistance 750g/500r ≤ 0.030 0.023
Impact Resistance Heavy Load 1000g steel ball, 100cm height; no coating cracks or peeling Compliant
Anti-slip Property Dry Friction Coefficient ≥ 0.50 0.58
Water Resistance 168h No blistering, no peeling; slight discoloration allowed Compliant
Chemical Resistance Oil Resistance (120# Solvent Gasoline, 72h) No blistering, no peeling; slight discoloration allowed Compliant
Alkali Resistance (20% NaOH, 72h)
Acid Resistance (10% H₂SO₄, 48h)


Matching Instructions
Coating Layer Material Model Packaging Specification Mixing Ratio Single Coat Usage (kg/m²) Single Coat Thickness (mm)
Primer OVG-0101 Single-Component Polyurethane Paint 15KG Single-component (direct use) 0.1–0.15 0.08
Mortar Layer OVG-0101/OVG-0102 Polyurethane Non-Yellowing Floor Paint 15KG/20KG 3:04 0.25–0.3 0.24
Putty Layer WEDO-0703 Weather-Resistant Polyurethane Floor Paint 15KG/15KG 2:01 0.1 0.07
Topcoat WEDO-0703 Weather-Resistant Polyurethane Floor Paint 15KG/15KG 2:01 0.15 0.12
Varnish Layer WEDO-0702 Acrylic Clear Coat 15KG/15KG 2:01 0.1–0.15 0.07–0.09


Construction Process
Process Name Specific Methods and Requirements Single Coat Usage (kg/m²)
Substrate Treatment 1. Substrate strength: Not less than C20
2. Substrate flatness: ≤5mm (measured with a 2m ruler)
3. Substrate dryness: Moisture content of substrate surface < 8%
4. Repair hollowing and cracks on the ground in advance
5. Fully grind the concrete substrate 		/
Primer Layer 1. Use OVG-0101 single-component polyurethane primer: Apply evenly with a roller
2. Use a wool brush for edges (door sides, wall corners, machine corners) 		0.1–0.15
Mid-Coat Mortar Layer 1. Use OVG-0101/OVG-0102 polyurethane epoxy floor paint: Mix base paint and curing agent in proportion, then add quartz sand (usually 80–120 mesh) at the ratio: Paint:Quartz sand = 1: 0.2–1
2. Scrape fully with a trowel; adjust the number of coats as needed
3. Grind and dust off after curing 		0.25–0.3
Putty Layer 1. Use WEDO-0703 weather-resistant polyurethane floor paint: Mix base paint and curing agent in proportion, then add appropriate fillers (quartz powder, talc powder, etc.) at the ratio: Paint:Filler = 1: 0.1–0.5, stir evenly
2. Scrape evenly with a trowel, focus on repairing defects like pinholes and air pits; adjust the number of coats as needed
3. Fully grind and dust off after curing 		0.10
Topcoat Layer 1. Use WEDO-0703 weather-resistant polyurethane floor paint: Mix base paint and curing agent in proportion until uniform
2. Apply evenly with a roller; ensure uniform layers with no missing areas 		0.15
Varnish Layer Use WEDO-0702 acrylic clear coat: Mix evenly, then apply evenly with a roller 0.1–0.15


Construction section


undefined



Notes

  • The construction environment temperature should be between 0 and 35℃. During outdoor construction in summer, it is necessary to avoid high temperatures and rain exposure.

  • For floors with severe sanding and dusting, the amount of primer used will increase. It is recommended to use the primer to fully penetrate and reinforce until the overall color of the concrete is uniform without whitening, to avoid peeling and hollowing of the floor.

  • When applying the topcoat by roller, it is necessary to ensure that the overall amount is uniform. There should be no flowing or piling of materials, otherwise the problem of mottling will occur.

  • After the colored paint is applied, the topcoat must be completed within the specified time; otherwise, it will affect the adhesion of the topcoat layer.

  • Topcoats containing red pigment are not suitable for varnishing.


Technical Statement

Our company can design construction plans of different specifications (thickness, effect, etc.) through flexible matching and combination of various products to meet the personalized requirements of all kinds of customers. To ensure that your project can select the appropriate floor system, please consult our professional technical advisors. However, when using our company's products, please strictly follow the construction process, dosage requirements and precautions of the product. Otherwise, our company will not bear any responsibility for the quality of the project or any losses.



Construction conditions

  • Air temperature: 0℃ - 35℃

  • Relative humidity < 80%

  • The moisture content of the substrate surface is less than 8%

  • The construction site should have good ventilation

  • Dew point temperature: The substrate and the substrate of the uncured coating must be at least 3℃ higher than the dew point temperature to reduce the risk of condensation or mottling of the ground coating. The ground with oil stains must be thoroughly cleaned; otherwise, it may affect the uniform application of the coating.
